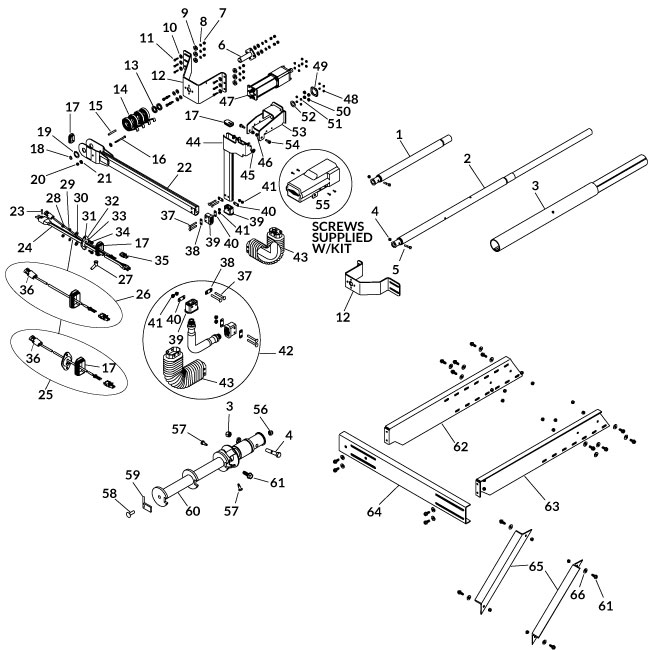

Front Arm Assemblies

Part #	Description	Item	Price
1123928	Front Flex Arm Kit w/o Motor – Grain Trailer		$605.00	Add To Cart
1125610	Front Flex Arm Kit w/o Motor – End Dump		$597.00	Add To Cart
1122880	Electric Crank Kit – 3″		$212.50	Add To Cart
1121415	SMARTwire™ Assembly w/Plate – 6 Ga. – Plug x 1/4″ Terminal x 10’9″		$135.50	Add To Cart
1125612	SMARTwire™ Assembly – 6 Ga. – Plug x 1/4″ Terminal x 10’9″		$129.15	Add To Cart
1120977	Motor Mount Hardware Kit		$26.50	Add To Cart
1121702	Flex Arm Joint Hardware Kit		$3.85	Add To Cart
1116926	Spring Support Hardware Kit		$13.60	Add To Cart
1121579	Pivot Bracket Hardware Kit – 6″ Vertical		$22.10	Add To Cart
1117007	Pivot Bracket Hardware Kit – End Dump		$8.95	Add To Cart
1120697	Roll Tube Extension w/Drive Shaft – 34.43″	Item: 1	$112.15	Add To Cart
1120698	Roll Tube Extension w/Drive Shaft – 45.37″	Item: 1	$121.85	Add To Cart
1120699	Roll Tube Extension w/Drive Shaft – End Dump	Item: 2	$182.95	Add To Cart
1124901	Roll Tube Extension – 3″ x 45″	Item: 3	$134.30	Add To Cart
1701580	Nylon Lock Nut – 3/8″	Item: 4	$0.68	Add To Cart
1704264	Hex Head Cap Screw – 3/8″ x 2″	Item: 5	$1.15	Add To Cart
1116920	Pivot Pin – 4 Spring	Item: 6	$48.75	Add To Cart
1700407	Hex Nut – 3/8″	Item: 7	$0.17	Add To Cart
1700434	Lock Washer – 3/8″	Item: 8	$0.17	Add To Cart
1120291	Spacer Washer – 1/4″ x 1″ OD x .406″	Item: 9	$2.43	Add To Cart
1700429	Flat Washer – 3/8″	Item: 10	$0.17	Add To Cart
1702891	Hex Head Cap Screw – 3/8″ x 1-14″	Item: 11	$0.68	Add To Cart
1121582	Pivot Mount Bracket – 6″ x 7-1/4″ Standoff	Item: 12	$77.20	Add To Cart
1121578	Pivot Mount Bracket – 6″ x 9-1/4″ Standoff	Item: 12	$96.00	Add To Cart
1116919	Pivot Mounting Bracket – 7-1/4″ Standoff	Item: 12	$56.30	Add To Cart
1118318	Spacer Washer – 1/4″ x 1.81″ OD x 1.28″	Item: 13	$1.99	Add To Cart
1111027	Spiral Torsion Spring	Item: 14	$15.15	Add To Cart
1117033	Spacer Tube – .35″ x 2-3/8″	Item: 15	$8.40	Add To Cart
1201022	Hex Head Cap Screw – 5/16″ x 3-1/2″	Item: 16	$1.53	Add To Cart
1704893	Cap Plug w/Hole	Item: 17	$9.20	Add To Cart
1702890	Flat Washer – 1-1/4″ x 1-7/8″	Item: 18	$0.92	Add To Cart
1702888	Retaining Ring – 1-1/4″	Item: 19	$2.06	Add To Cart
1700418	Centerlock Hex Nut – 3/8″	Item: 20	$0.38	Add To Cart
1700428	Flat Washer – 5/16″	Item: 21	$0.17	Add To Cart
1121617	Lower Flex Arm w/Warning Decals – Front	Item: 22	$108.50	Add To Cart
1704751	Harness Lock Pin – 1/4″ x 7/8″	Item: 23	$0.92	Add To Cart
1704987	SMARTwire™ – 6 Ga. – Plug x 1/4″ Terminal – 10’9″	Item: 24	$80.55	Add To Cart
1121429	SMART2™Encoder Wire w/Plate – 18 Ga. – 10’6″	Item: 25	$45.65	Add To Cart
1121998	SMART2™Encoder Wire – 18 Ga. – 10’6″	Item: 26	$41.15	Add To Cart
1704330	Rubber Insulating Boot	Item: 27	$1.76	Add To Cart
1700408	Hex Nut – 1/4″	Item: 28	$0.17	Add To Cart
1700436	Lock Washer – 1/4″	Item: 29	$0.17	Add To Cart
1700427	Flat Washer – 1/4″	Item: 30	$0.17	Add To Cart
1121432	Wiring Plate	Item: 31	$0.00	Add To Cart
1704828	Wiring Plate Gasket	Item: 33	$0.00	Add To Cart
1700403	Self-Tapping Screw – 1/4″ x 3/4″	Item: 34	$0.46	Add To Cart
1704799	Weatherpack – Cavity Plug	Item: 35	$0.99	Add To Cart
1704798	Weatherpack – Tower	Item: 36	$4.65	Add To Cart
1701455	Carriage Bolt – 5/16″ x 2-1/2″ – GR5	Item: 37	$0.68	Add To Cart
1121414	Bellow Plate – Square Holes	Item: 38	$0.95	Add To Cart
1704891	End Fitting	Item: 39	$14.25	Add To Cart
1121413	Bellow Plate – Round Holes	Item: 40	$0.95	Add To Cart
1704931	Flanged Nylon Lock Nut – 5/16″	Item: 41	$0.61	Add To Cart
1125154	Replacement Flex Arm Joint	Item: 42	$142.30	Add To Cart
1704775	Arm Bellow	Item: 43	$23.10	Add To Cart
1121289	Upper Flex Arm – Motor	Item: 44	$80.80	Add To Cart
1120677	Upper Arm Spacer	Item: 45	$0.95	Add To Cart
1701283	Top Lock Flange Nut – 3/8″	Item: 46	$0.54	Add To Cart
1120967	4500 Series Motor	Item: 47	$1,236.00	Add To Cart
1701543	Nylon Lock Hex Nut – 1/4″	Item: 48	$0.17	Add To Cart
1128243	Motor Mount Bearing Retainer	Item: 49	$3.20	Add To Cart
1704736	Radial Ball Bearing – 1/4″ x 3/4″	Item: 50	$3.85	Add To Cart
1120680	Motor Mount Bearing Spacer	Item: 51	$1.76	Add To Cart
1120679	Motor Spacer	Item: 52	$0.50	Add To Cart
1120776	4500 Series HD Motor Mount – 7-1/4″	Item: 53	$102.15	Add To Cart
1120662	4500 Series Motor Mount – 9-1/4″	Item: 53	$102.15	Add To Cart
1704778	Shoulder Bolt – 3/8″ x 1/2″	Item: 54	$4.58	Add To Cart
1121659	Motor Cover Kit – Black	Item: 55	$35.45	Add To Cart
1128340	Motor Cover Kit – Chrome	Item: 55	$85.30	Add To Cart
1704297	Nylon Lock Nut – 5/16″	Item: 56	$0.17	Add To Cart
1705198	Self-Drilling Screw – 1/4″ x 1″	Item: 57	$0.92	Add To Cart
1704237	Carriage Bolt – 5/16″ x 1″ – GR5	Item: 58	$0.46	Add To Cart
1118194	Cartridge Clamp	Item: 59	$2.65	Add To Cart
1122264	Drive Shaft – 4500 w/3″ Roll Tube	Item: 60	$188.95	Add To Cart
1700400	Self-Tapping Screw – Non-Corrosive Coating – 3/8″ x 1″	Item: 61	$0.94	Add To Cart
1113002	Front Mount Kit – Sloped		$391.40	Add To Cart
1113306	Universal Extension Bracket – Passenger Side	Item: 62	$113.65	Add To Cart
1113307	Universal Extension Bracket – Driver Side	Item: 63	$113.65	Add To Cart
1112178	Front Mounting Bracket – Sloped	Item: 64	$133.25	Add To Cart
1112310	Extended Extension Support Bracket	Item: 65	$24.80	Add To Cart
1700419	Centerlock Hex Nut – 5/16″	Item: 20	$0.17	Add To Cart
