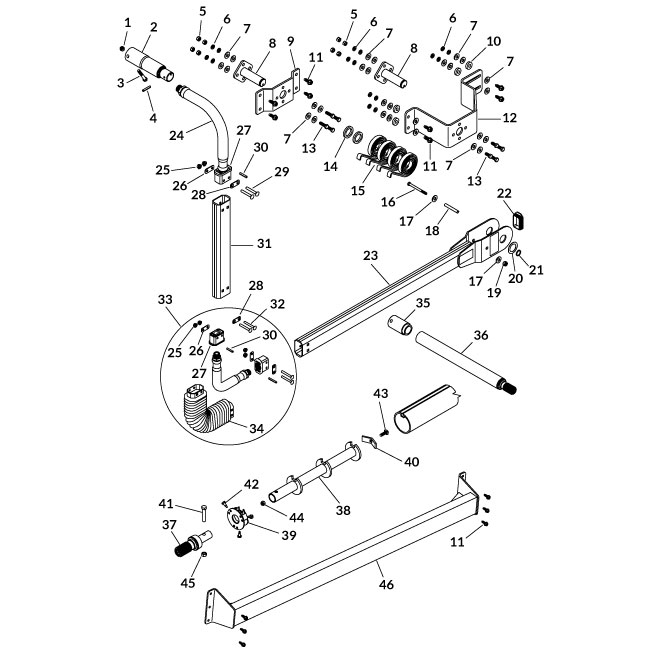

Rear Side Hinge Assemblies

Part #	Description	Item	Price
1117022	Manual Override Extension Kit		$134.09	Add To Cart
1122879	Manual Crank Kit – 3″		$260.51	Add To Cart
1121702	Flex Arm Joint Hardware Kit		$4.19	Add To Cart
1121737	Rear Flex Arm Hardware Kit – Side Hinge		$8.10	Add To Cart
1116926	Spring Support Hardware Kit		$14.83	Add To Cart
1116946	Pivot Bracket Hardware Kit – 4″ Vertical		$17.58	Add To Cart
1700418	Centerlock Hex Nut – 3/8″	Item: 1	$0.43	Add To Cart
1117777	Roll Tube Bearing Pack	Item: 2	$290.58	Add To Cart
1702573	Hex Head Cap Screw – 3/8″ x 2-1/2″	Item: 3	$1.58	Add To Cart
1700445	Spring Pin – 1/4″ x 1-1/2″	Item: 4	$1.26	Add To Cart
1700407	Hex Nut – 3/8″	Item: 5	$0.18	Add To Cart
1700434	Lock Washer – 3/8″	Item: 6	$0.18	Add To Cart
1700429	Flat Washer – 3/8″	Item: 7	$0.18	Add To Cart
1116920	Pivot Pin – 4 Spring	Item: 8	$53.28	Add To Cart
1117767	Pivot Bracket	Item: 9	$28.63	Add To Cart
1120291	Spacer Washer – 1/4″ x 1″ OD x .406″	Item: 10	$2.67	Add To Cart
1700400	Self-Tapping Screw – Non-Corrosive Coating – 3/8″ x 1″	Item: 11	$1.07	Add To Cart
1116919	Pivot Mounting Bracket – 4″ x 7-1/4″ Standoff	Item: 12	$61.52	Add To Cart
1702891	Hex Head Cap Screw – 3/8″ x 1-1/4″	Item: 13	$0.74	Add To Cart
1118318	Spacer Washer – 1/4″ x 1.81″ OD x 1.28″	Item: 14	$2.17	Add To Cart
1111027	Spiral Torsion Spring	Item: 15	$16.49	Add To Cart
1201022	Hex Head Cap Screw – 5/16″ x 3-1/2″	Item: 16	$1.66	Add To Cart
1700428	Flat Washer – 5/16″	Item: 17	$0.18	Add To Cart
1117033	Spacer Tube – .35″ x 2-5/8″	Item: 18	$9.18	Add To Cart
1700419	Nylon Lock Hex Nut – 5/16″	Item: 19	$0.18	Add To Cart
1702890	Flat Washer – 1-1/4″	Item: 20	$1.13	Add To Cart
1702888	Retaining Ring – 1-1/4″	Item: 21	$2.25	Add To Cart
1704892	Cap Plug	Item: 22	$10.06	Add To Cart
1121294	Lower Flex Arm w/Warning Decals – Rear	Item: 23	$118.47	Add To Cart
1121680	Upper Flex Arm Joint – Side Hinge	Item: 24	$187.58	Add To Cart
1704931	Flanged Nylon Lock Nut – 5/16″	Item: 25	$0.67	Add To Cart
1121413	Bellow Plate – Round Holes	Item: 26	$1.01	Add To Cart
1706260	End Fitting – Aluminum	Item: 27	$25.89	Add To Cart
1121414	Bellow Plate – Square Holes	Item: 28	$1.01	Add To Cart
1704971	Carriage Bolt – 5/16″ x 2-1/4″ – GR5	Item: 29	$1.26	Add To Cart
1704966	Spring Pin – 1/4″ x 1-3/8″	Item: 30	$1.49	Add To Cart
1121738	Upper Flex Arm – Side Hinge	Item: 31	$31.01	Add To Cart
1701455	Carriage Bolt – 5/16″ x 2-1/2″ GR5	Item: 32	$1.30	Add To Cart
1128831	Replacement Flex Arm Joint – Aluminum	Item: 33	$169.00	Add To Cart
1704775	Arm Bellow	Item: 34	$25.23	Add To Cart
1117020	Manual Override Spline Connector	Item: 35	$108.79	Add To Cart
1117023	Manual Override Spline Assembly	Item: 36	$39.04	Add To Cart
1121111	Manual Crank Spline – 3″	Item: 37	$175.58	Add To Cart
1121039	Rear Cartridge	Item: 38	$75.47	Add To Cart
1121040	Roll Tube End Cap – Rear	Item: 39	$39.25	Add To Cart
1118194	Cartridge Clamp	Item: 40	$2.90	Add To Cart
1704264	Hex Head Cap Screw – 3/8″ x 2″	Item: 41	$1.26	Add To Cart
1705198	Self-Drilling Screw – 1/4″ x 1″	Item: 42	$1.12	Add To Cart
1704237	Carriage Bolt – 5/16″ x 1″ – GR5	Item: 43	$0.68	Add To Cart
1704297	Nylon Lock Nut – 5/16″	Item: 44	$0.86	Add To Cart
1701580	Nylon Lock Nut – 3/8″	Item: 45	$0.74	Add To Cart
CALL TO ORDER	Beam Bracket – Live-Bottom Trailers	Item: 46	$0.00	Details
