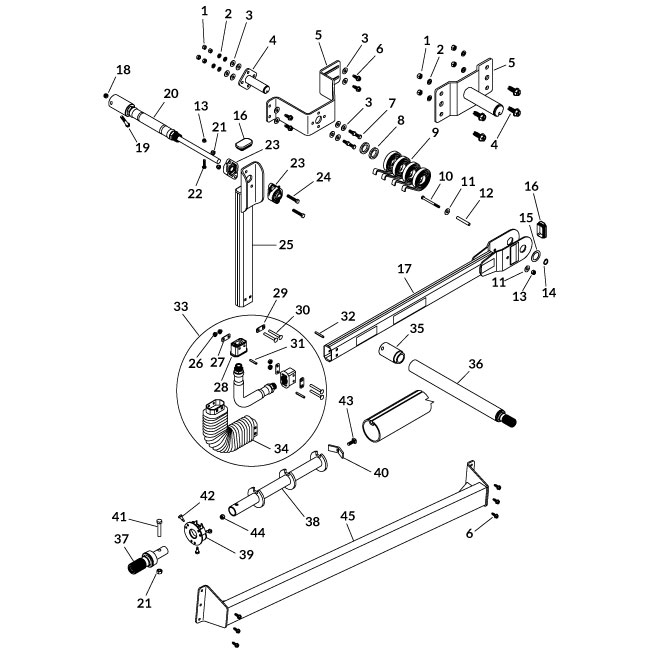

Rear Top Hinge Assemblies

Part #	Description	Item	Price
1126477	Rear Flex Arm Kit – Top Hinge		$810.00	Add To Cart
1117022	Manual Override Extension Kit		$122.80	Add To Cart
1122879	Manual Crank Kit – 3″		$238.50	Add To Cart
1121702	Flex Arm Joint Hardware Kit		$3.85	Add To Cart
1116926	Spring Support Hardware Kit		$13.60	Add To Cart
1117007	Pivot Bracket Hardware Kit – End Dump		$8.95	Add To Cart
1116946	Pivot Bracket Hardware Kit – 4″ Vertical		$16.10	Add To Cart
1121736	Extension Hardware – Gate Flex™		$139.50	Add To Cart
1121647	HD Flex Joint Hardware		$7.05	Add To Cart
1700407	Hex Nut – 3/8″	Item: 1	$0.17	Add To Cart
1700434	Lock Washer – 3/8″	Item: 2	$0.17	Add To Cart
1700429	Flat Washer – 3/8″	Item: 3	$0.17	Add To Cart
1116920	Pivot Pin – 4 Spring	Item: 4	$48.75	Add To Cart
1116919	Pivot Mounting Bracket – 7-1/4″ Standoff	Item: 5	$56.30	Add To Cart
1116994	Pivot Bracket – Sloped – Gate Flex™	Item: 5	$73.25	Add To Cart
1700400	Self-Tapping Screw – Non-Corrosive Coating – 3/8″ x 1″	Item: 6	$0.94	Add To Cart
1702891	Hex Head Cap Screw – 3/8″ x 1-1/4″	Item: 7	$0.68	Add To Cart
1118318	Spacer Washer – 1/4″ x 1.81″ OD x 1.28″	Item: 8	$1.99	Add To Cart
1111027	Spiral Torsion Spring	Item: 9	$15.15	Add To Cart
1201022	Hex Head Cap Screw – 5/16″ x 3-1/2″	Item: 10	$1.53	Add To Cart
1700428	Flat Washer – 5/16″	Item: 11	$0.17	Add To Cart
1117033	Spacer Tube – .35″ x 2-3/8″	Item: 12	$8.40	Add To Cart
1700419	Nylon Lock Hex Nut – 5/16″	Item: 13	$0.17	Add To Cart
1702888	External Retaining Ring – 1-1/4″	Item: 14	$2.06	Add To Cart
1702890	Flat Washer – 1-1/4″	Item: 15	$0.92	Add To Cart
1704892	Cap Plug	Item: 16	$9.20	Add To Cart
1121294	Lower Flex Arm w/Warning Decals – Rear	Item: 17	$108.50	Add To Cart
1121999	Lower Arm Assembly	Item: 17	$0.00	Add To Cart
1700418	Centerlock Hex Nut – 3/8″	Item: 18	$0.38	Add To Cart
1702573	Hex Head Cap Screw – 3/8″ x 2-1/2″	Item: 19	$1.45	Add To Cart
1116990	Gate Flex™	Item: 20	$253.15	Add To Cart
1701580	Nylon Lock Nut – 3/8″	Item: 21	$0.68	Add To Cart
1703487	Hex Head Cap Screw – 5/16″ x 1-1/2″	Item: 22	$2.60	Add To Cart
1704703	Flange Bearing – 20mm – 2 Bolt	Item: 23	$28.60	Add To Cart
1704264	Hex Head Cap Screw – 3/8″ x 2″	Item: 24	$1.15	Add To Cart
1121649	Upper Flex Arm – Gate Flex™	Item: 25	$71.10	Add To Cart
1704931	Flanged Nylon Lock Nut – 5/16″	Item: 26	$0.61	Add To Cart
1121413	Bellow Plate – Round Holes	Item: 27	$0.95	Add To Cart
1706260	End Fitting – Aluminum	Item: 28	$23.70	Add To Cart
1121414	Bellow Plate – Square Holes	Item: 29	$0.95	Add To Cart
1701455	Carriage Bolt – 5/16″ x 2-1/2″	Item: 30	$0.68	Add To Cart
1704966	Spring Pin – 1/4″ x 1-3/8″	Item: 31	$1.15	Add To Cart
1701360	Spring Pin – 1/4″ x 1-3/4″	Item: 32	$3.88	Add To Cart
1128831	Replacement Flex Arm Joint – Aluminum	Item: 33	$154.75	Add To Cart
1704775	Arm Bellow	Item: 34	$23.10	Add To Cart
1117020	Manual Override Spline Connector	Item: 35	$99.65	Add To Cart
1117023	Manual Override Spline Assembly	Item: 36	$35.80	Add To Cart
1121111	Manual Crank Spline – 3″	Item: 37	$160.75	Add To Cart
1121039	Rear Cartridge	Item: 38	$69.10	Add To Cart
1121040	Roll Tube End Cap – Rear	Item: 39	$36.00	Add To Cart
1118194	Cartridge Clamp	Item: 40	$2.65	Add To Cart
1704264	Hex Head Cap Screw – 3/8″ x 2″	Item: 41	$1.15	Add To Cart
1705198	Self-Drilling Screw – 1/4″ x 1″	Item: 42	$0.92	Add To Cart
1704237	Carriage Bolt – 5/16″ x 1″ – GR5	Item: 43	$0.46	Add To Cart
1704297	Nylon Lock Nut – 5/16″	Item: 44	$0.17	Add To Cart
CALL TO ORDER	Beam Bracket – Live-Bottom Trailers	Item: 45	$0.00	Details
