Description
AutoTrap™ uses 4-gauge wire, ProTrap™ uses 6-gauge wire.

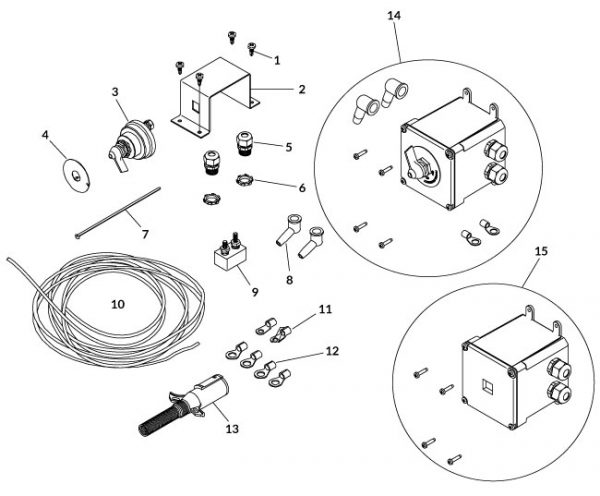

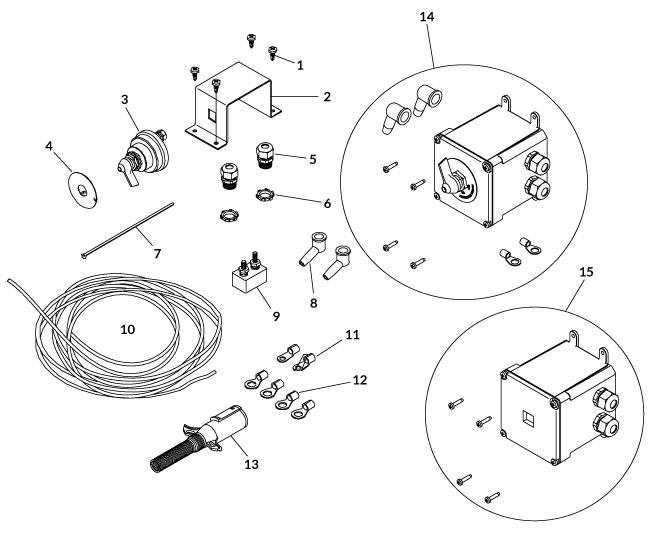

INCLUDED IN KIT:
1 – 1700398 Self-Drilling Screw (Qty. 4)
2 – 1118323 Disconnect Switch Mounting Bracket (Qty. 1)
3 – 1704283 battery Disconnect Rotary Switch (Qty. 1)
4 – 1704284 Face Plate (Qty. 1)
5 – 1704152 Dome Nut – 1/2″ (Qty. 2)
6 – 1704187 Lock Nut – 1/2″ (Qty. 2)
7 – 1703231 Cable Tie – 8″ (Qty. 15)
8 – 1704330 Rubber Insulating Boot (Qty. 2)
9 – 1704354 40-Amp Modified-Reset Circuit Breaker (Qty. 1)
10 – 1118495 Dual Conductor Wire – 6 Ga. – 30′ (Qty. 1)
11 – 1703245 Ring Terminal – 6 Ga. x #10 Stud – Motor/Breaker (Qty. 2)
12 – 1703244 Ring Terminal – 6 Ga. x 3/8″ Stud – Battery (Qty. 2)
NOT INCLUDED IN KIT:
13, 14, 15
Note: Includes dielectric connector protector.
