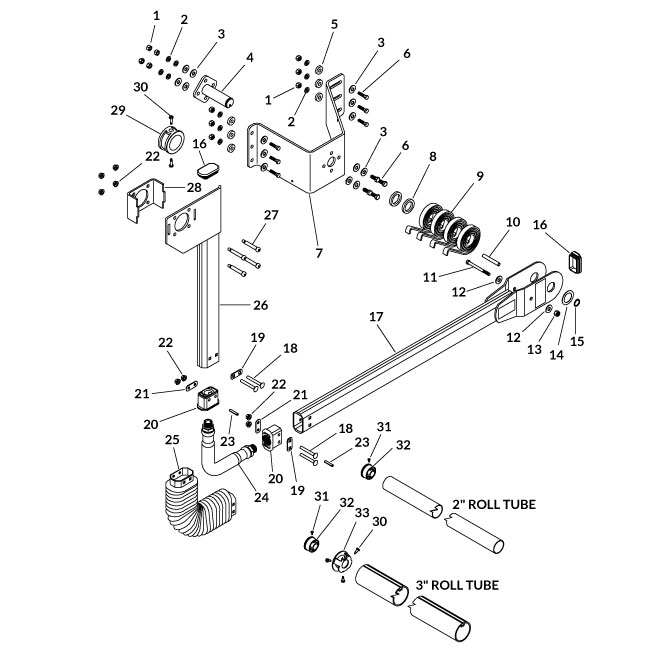

Heavy-Duty Front Arm Returns

Part #	Description	Item	Price
1124119	Heavy-Duty Front Arm Return		$824.84	Add To Cart
1124794	HD Front Arm Return – 3″		$948.55	Add To Cart
1121702	Flex Arm Joint Hardware Kit		$4.51	Add To Cart
1116926	Spring Support Hardware Kit		$15.94	Add To Cart
1121579	Pivot Bracket Hardware Kit		$25.95	Add To Cart
1121723	Exposed Spline/Bearing Hardware Kit		$104.52	Add To Cart
1124795	Exposed Spline/Bearing Hardware Kit – 3″		$203.91	Add To Cart
1121647	Flex Joint Hardware		$8.23	Add To Cart
1700407	Hex Nut – 3/8″	Item: 1	$0.20	Add To Cart
1700434	Lock Washer – 3/8″	Item: 2	$0.20	Add To Cart
1700429	Flat Washer – 3/8″	Item: 3	$0.20	Add To Cart
1116920	Pivot Pin – 4 Spring	Item: 4	$57.27	Add To Cart
1120291	Spacer Washer – 1/4″ x 1″ OD x .406″	Item: 5	$2.87	Add To Cart
1702891	Hex Head Cap Screw – 3/8″ x 1-14″	Item: 6	$0.79	Add To Cart
1121578	Pivot Mount Bracket – 6″ x 9-1/4″ Standoff	Item: 7	$112.68	Add To Cart
1118318	Spacer Washer – 1/4″ x 1.81″ OD x 1.28″	Item: 8	$2.33	Add To Cart
1111027	Spiral Torsion Spring	Item: 9	$17.73	Add To Cart
1117033	Spacer Tube – .35″ x 2-3/8″	Item: 10	$9.88	Add To Cart
1201022	Hex Head Cap Screw – 5/16″ x 3-1/2″	Item: 11	$1.79	Add To Cart
1700428	Flat Washer – 5/16″	Item: 12	$0.20	Add To Cart
1700419	Nylon Lock Hex Nut – 5/16″	Item: 13	$0.20	Add To Cart
1702890	Flat Washer – 1-1/4″	Item: 14	$1.22	Add To Cart
1702888	Retaining Ring – 1-1/4″	Item: 15	$2.41	Add To Cart
1704892	Cap Plug	Item: 16	$10.80	Add To Cart
1121617	Lower Flex Arm w/Warning Decals – Front	Item: 17	$127.36	Add To Cart
1701455	Carriage Bolt – 5/16″ x 2-1/2″	Item: 18	$1.39	Add To Cart
1121414	Bellow Plate – Square Holes	Item: 19	$1.09	Add To Cart
1704891	End Fitting	Item: 20	$16.72	Add To Cart
1121413	Bellow Plate – Round Holes	Item: 21	$1.09	Add To Cart
1704931	Flanged Nylon Lock Nut – 5/16″	Item: 22	$0.73	Add To Cart
1704966	Spring Pin – 1/4″ x 1-3/8″	Item: 23	$1.60	Add To Cart
1125154	Replacement Flex Arm Joint	Item: 24	$167.15	Add To Cart
1704775	Arm Bellow	Item: 25	$27.12	Add To Cart
1121281	Upper Flex Arm – Bearing	Item: 26	$81.06	Add To Cart
1124958	Upper Flex Arm – Bearing – 3″	Item: 26	$84.86	Add To Cart
1704943	Shoulder Bolt – 3/8″ x 2″ Thread x 5/16″ x 1/2″	Item: 27	$5.28	Add To Cart
1121430	Bearing Mount Box	Item: 28	$20.05	Add To Cart
1123248	Bearing Mount Box – 3″	Item: 28	$28.52	Add To Cart
1704942	Rear Arm Bearing Ring	Item: 29	$18.27	Add To Cart
1705160	Rear Arm Bearing Ring – 3″	Item: 29	$68.24	Add To Cart
1705198	Self-Drilling Screw – 1/4″ x 1″	Item: 30	$1.20	Add To Cart
1704743	Self-Drilling Screw – #10 x 1/2″	Item: 31	$0.26	Add To Cart
1100138	Nylon End Plug	Item: 32	$14.84	Add To Cart
1121041	Roll Tube End Cap – Front	Item: 33	$42.19	Add To Cart
