Description

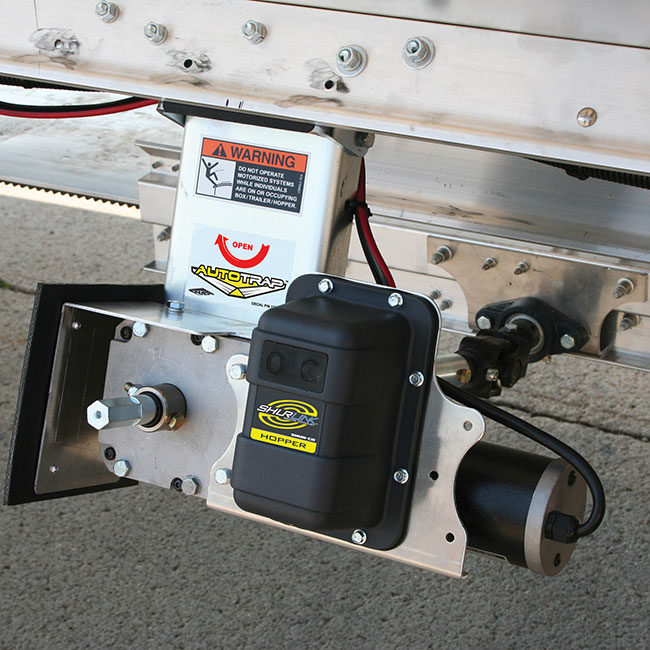

AutoTrap™ combines the best elements of Shur-Co® SMARTrailer™ design! You get a compact, high-clearance system at an affordable price, with patented SMARTwire™ connections and built-in compatability with our ShurLink PRO™ and ShurLink EZR™ remotes.
The thru-bore motor design of the AutoTrap™ has performance characteristics comparable to our ProTrap® system, but in a more compact size and weight – nearly 40% lighter! This design also allows for easy one-bolt conversion to manual operation, if necessary. The protective polymer sleeve acts as a corrosion barrier between drive shaft and motor.
This system has a one-size-fits all design, to interface with 1-inch, 7/8-inch or 3/4-inch crank shafts. Wireless operation via pre-programmed ShurLink PROâ„¢ or ShurLink EZRâ„¢ remote is standard while push-button controls at each opener are also included.
Available in 1-hopper, 2-hopper, 3-hopper and 4-hopper stand-alone configurations or in combination with 4500 Series HD electric tarps, AutoTrap™ is the industry’s premium choice in electric hopper openers.
Key Features
• All-Metal Gear MotorÂ
• Integrated Rock ShieldÂ
• Thru-Bore Motor
• Protective Polymer Motor Sleeve
• Thru-Bore Manual Drive Shaft w/3/4″ Hex Milled EndÂ
• Universal Mounting Bracket
• Crank Shaft Adapter KitÂ
• 1-Bolt Manual Changeover
• Emergency Back-Up CrankÂ
• SMARTwireâ„¢ Sealed Harness – Our patented SMARTwire’s sealed connections make installation easy – no additional wire stripping or crimping of connections required. The SMARTwireâ„¢ harness has molded rubber connectors and automotive silicone seals, precision-machined brass pins and sockets and dual 6-gauge wire.
• ShurLinke PROâ„¢ and ShurLink EZRâ„¢ Remote – SMART-touch technology for precision control of Shur-Co® electrics! The ShurLink PROâ„¢ remote offers 2-way communication in an easy-to-read digital display.
CHOOSING YOUR SYSTEM
Follow the chart below to help in determining proper motor selection when selecting your electric hopper door openers. Both Shur-Co’s AutoTrapâ„¢ and ProTrap® motors are rated torque loads over 230 foot-pounds. The load on the hopper must NOT exceed the torque needed in manual operation.
| AutoTrap™ | ProTrap® | |
| Â FARM TO MARKET USE | X | X |
| Â COMMERCIAL/CO-OP USE | Not Recommended | X |
| Â HAULING COMMODITY GRAIN | ||
| Â Corn, Wheat, Soybeans, Rice | X | X |
| Â HAULING HIGH-DENSITY MATERIALS | ||
| Â Smooth River Rock | Occasional Use | X |
| Â Fractured Rock | Not Recommended | X |
| Â Concrete Construction Waste | X | |
| Â Fly Ash (Compacted) | X | |
| Â Fertilizer | Occasional Use | X |
| Â HEAPED LOADS | ||
| Â Light to Moderate | X | X |
| Â Modeate to Heavy | Based on Material | X |
| Â HOPPER DOOR SIZE | ||
| Â Standard – Up to 1,200 Sq. In. | X | X |
| Â Oversized – Over 1,200 Sq. In. | Based on Material | X |
| Â HIGHER GROUND CLEARANCE | X | |
| Â COMPACT/LIGHTWEIGHT | X |
