Description
Converts offset crank retainer to pinless. Eliminates pin-and-cable hassles. Secures crank to side of trailer, accommodates rear doors and gates.

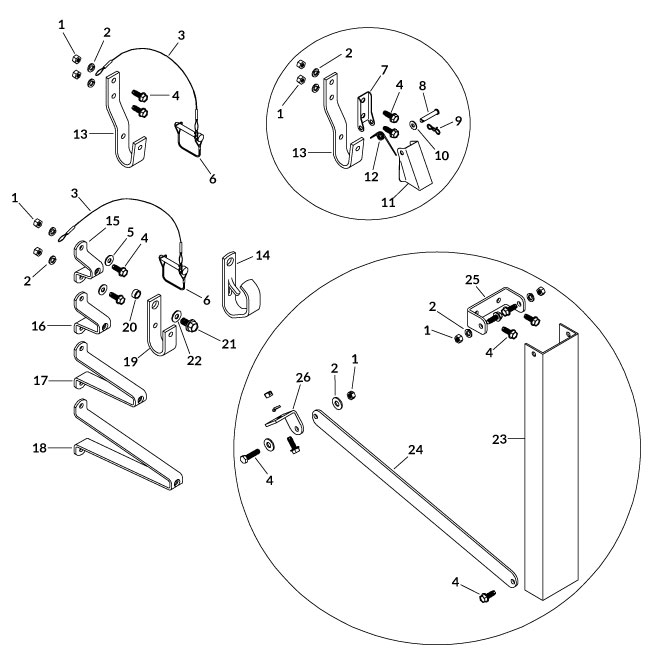

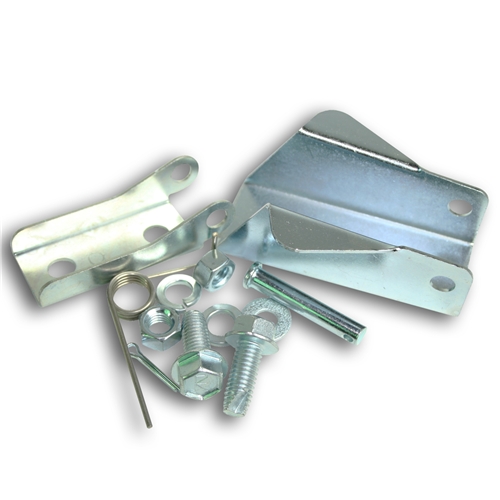

INCLUDED IN KIT:
1 – 1700407 Nuts – 3/8″ (Qty. 2)
2 – 1700434 Lock Washers – 3/8″ (Qty. 2)
4 – 1700400 Self-Tapping Screws – 3/8″ x 1″ (Qty. 2)
7 – 1114599 Offset Pinless Crank Retainer Base Plate (Qty. 1)
8 – 1703133 Clevis Pin – 5/16″ x 1-3/4″ (Qty. 1)
9 – 1704380 Bowtie Cotter Pin – 1-3/8″ (Qty. 1)
10 – 1700427 Flat Washer – 1/4″ (Qty. 1)
11 – 1114600 Offset Pinless Crank Retainer Lock (Qty. 1)
12 – 1703134 Tension Spring (Qty. 1)
NOT INCLUDED IN KIT:
3, 5, 6, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26
