Description
NOTÂ Â AVAILABLE FOR ONLINE PURCHASE. CALLÂ 1-800-474-8756 TOÂ Â ORDER.
Fabric back cap forms a watertight seal where tarp and trailer meet. Flexes to prevent loading damage. Beefed-up bow permits bow spacing up to 12′ apart. Universal single bow bracket is commonly used on grain carts, accommodates lip in-lip out top rails.

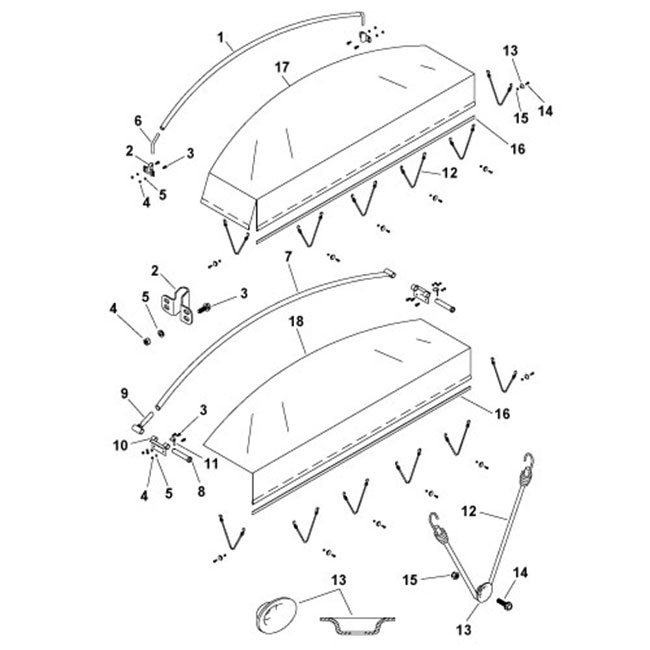

INCLUDED IN KIT:
3 – 1700400 Self-Tapping Screw – 3/8″ x 1″ (Qty. 6)
4 – 1700407 Hex Nut – 3/8″ (Qty. 6)
5 – 1700434 Lock Washer – 3/8″ (Qty. 6)
7 – 1101927 Heavy-Duty High Rise Bow (Qty. 1)
8 – 1104123 Heavy-Duty Bow Pin (Qty. 2)
9 – 1104706 Heavy-Duty Bow Shank (Qty. 1)
10 – 1106614 Heavy-Duty Bow Bracket (Qty. 2)
11 – 1701098 Lynch Pin – 5/16″ x 1-3/4″ (Qty. 2)
12 – 1700990 Bungee Cord – 18″ (Qty. 6)
13 – 1701355 Rope Anchors (Qty. 6)
14 – 1701059 Self-Tapping Screw – 5/16″ x 1″ (Qty. 6)
15 – 1700419 Nylon Lock Hex Nut – 5/16″ (Qty. 6)
16 – 1700581 Aluminum Flat Bar – 103″ (Qty. 2)
NOT INCLUDED IN KIT:
1, 2, 6, 17, 18
NOTE: $25 fee for non-standard caps – call for availability.
NOTE: Low rise caps have a 6″ rise; high rise caps have a 10″ rise. Low rise bows have an 8″ rise; high rise bows have a 12″
