TPB Kit w/32′ Ridgepole – 8″ or 12″ Rise – 5 Bows

$1,304.00

TPB Kit w/32′ Ridgepole – 8″ or 12″ Rise – 5 Bows

Out of stock

Compare
SKU: 27' - 32' Category:

Description

Bows move freely in angled brackets, swinging up and over loads without binding.
Fits trailers 27′ – 32′ long.

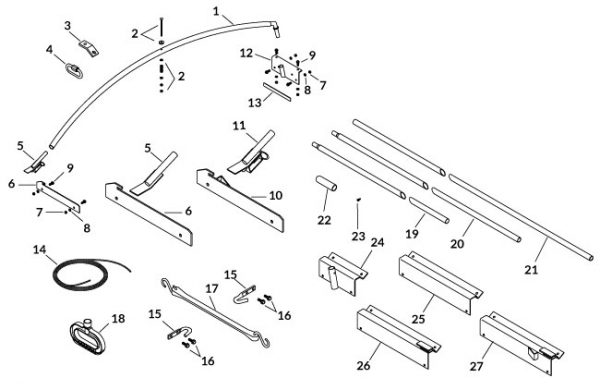

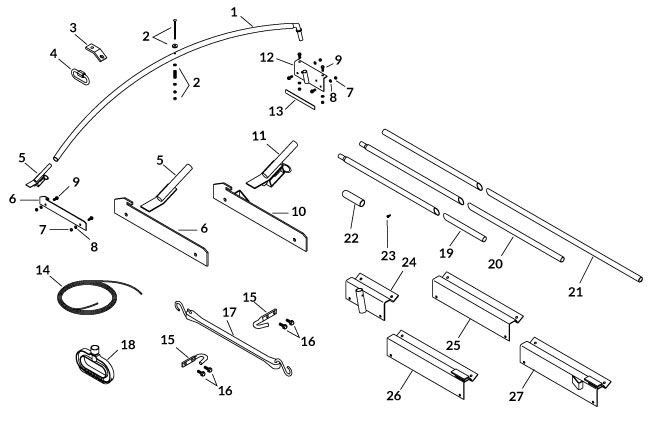

INCLUDED IN KIT:

1 – 1105337 or 1105331 Turning Point™ Bow – 8″ Rise or 12″ Rise (Qty. 5)

2 – 1110368 Bow Attachment Spring Assembly (Qty. 5)

3 – 1105325 Pull Rope Anchor (Qty. 1)

4 – 1701219 Quick Link – 5/16" (Qty. 1)

5 – 1105333 or 1105327 Bow Rest – 8″ Rise or 12″ Rise (Qty. 4)

6 – 1105314 Bow Stop (Qty. 4)

7 – 1700407 Hex Nut – 3/8" (Qty. 30)

8 – 1700434 Lock Washer – 3/8" (Qty. 30)

9 – 1700400 Self-Tapping Screw – 3/8" x 1" (Qty. 30)

10 – 1105320 Turning Point™ Bow Stop w/Catch (Qty. 1)

11 – 1105338 or 1105322 Bow Rest/Latch – 8″ Rise or 12″ Rise (Qty. 1)

12 – 1105317 Bow Pivot Bracket (Qty. 5)

13 – 1107006 Pivot Bracket Spacer (Qty. 15)

14 – 1100469 Rope – 32′ (Qty. 1)

15 – 1700682 Box Hook – 5/16" Holes (Qty. 2)

16 – 1700403 Self-Tapping Screw – 1/4" x 3/4" (Qty. 4)

17 – 1700649 Rubber Strap – 15" (Qty. 1)

18 – 1106929 Pull Handle (Qty. 1)

19 – 1701204 Ridgepole Tube – 16′ (Qty. 2)

22 – 1700212 Protective Cap (Qty. 2)

23 – 1104768 Self-Drilling Screw – 1/4" x 3/4" (Qty. 2)



NOTE: Order Turning Pointâ„¢ bow kits by size of trailer, specifying 8″ rise or 12″ rise. Reverse roll option available; call for details. All components other than standard may require a non-refundable engineering fee of $75 and manufacturing fee of $25. Call for details.



Additional information

Weight 100 lbs
Dimensions 400 × 16 × 16 in
