Description
Bows move freely in angled brackets, swinging up and over loads without binding.
Fits trailers 35′ – 40′ long.

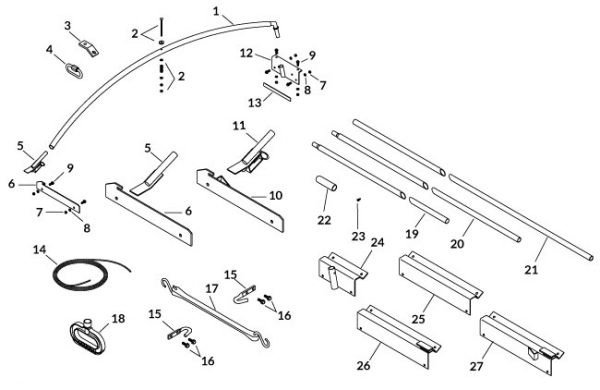

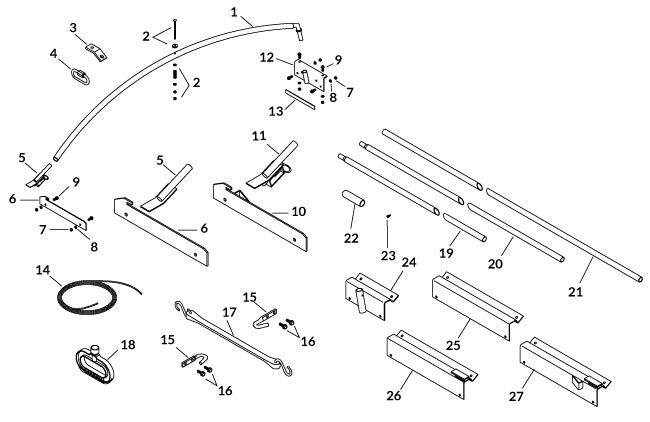

INCLUDED IN KIT:
1 – 1105337 or 1105331 Turning Pointâ„¢ Bow – 8″ Rise or 12″ Rise (Qty. 6)
2 – 1110368 Bow Attachment Spring Assembly (Qty. 6)
3 – 1105325 Pull Rope Anchor (Qty. 1)
4 – 1701219 Quick Link – 5/16″ (Qty. 1)
5 – 1105333 or 1105327 Bow Rest – 8″ Rise or 12″ Rise (Qty. 5)
6 – 1105314 Bow Stop (Qty. 5)
7 – 1700407 Hex Nut – 3/8″ (Qty. 36)
8 – 1700434 Lock Washer – 3/8″ (Qty. 36)
9 – 1700400 Self-Tapping Screw – 3/8″ x 1″ (Qty. 36)
10 – 1105320 Turning Pointâ„¢ Bow Stop w/Catch (Qty. 1)
11 – 1105338 or 1105322 Bow Rest/Latch – 8″ Rise or 12″ Rise (Qty. 1)
12 – 1105317 Bow Pivot Bracket (Qty. 6)
13 – 1107006 Pivot Bracket Spacer (Qty. 18)
14 – 1100469 Rope – 32′ (Qty. 1)
15 – 1700682 Box Hook – 5/16″ Holes (Qty. 2)
16 – 1700403 Self-Tapping Screw – 1/4″ x 3/4″ (Qty. 4)
17 – 1700649 Rubber Strap – 15″ (Qty. 1)
18 – 1106929 Pull Handle (Qty. 1)
20 – 1701205 Ridgepole Tube – 20′ (Qty. 2)
22 – 1700212 Protective Cap (Qty. 2)
23 – 1104768 Self-Drilling Screw – 1/4″ x 3/4″ (Qty. 2)
NOT INCLUDED IN KIT: 19, 21, 24, 25, 26, 27
NOTE: Order Turning Pointâ„¢ bow kits by size of trailer, specifying 8″ rise or 12″ rise. Reverse roll option available; call for details. All components other than standard may require a non-refundable engineering fee of $75 and manufacturing fee of $25. Call for details.
