TPB Kit w/40′ Ridgepole – 12″ Rise – 6 Bows

$1,270.70

TPB Kit w/40′ Ridgepole – 12″ Rise – 6 Bows

Out of stock

Compare

Description

Bows move freely in angled brackets, swinging up and over loads without binding.
Used for Alumatech trailers ONLY.

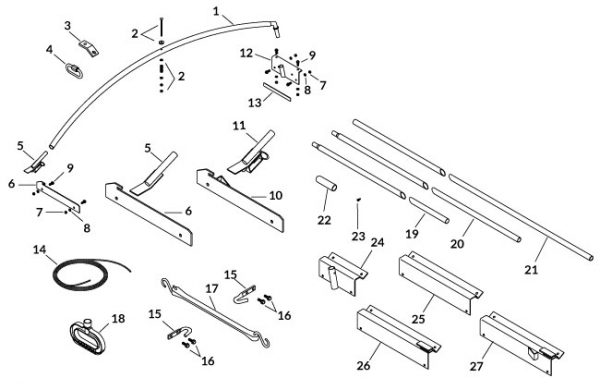

INCLUDED IN KIT:

1 – 1105331 Turning Pointâ„¢ Bow – 12″ Rise (Qty. 6)

2 – 1110368 Bow Attachment Spring Assembly (Qty. 6)

3 – 1105325 Pull Rope Anchor (Qty. 1)

4 – 1701219 Quick Link – 5/16″ (Qty. 1)

5 – 1105327 Bow Rest – 12″ Rise (Qty. 5)

7 – 1700407 Hex Nut – 3/8″ (Qty. 48)

8 – 1700434 Lock Washer – 3/8″ (Qty. 48)

9 – 1700400 Self-Tapping Screw – 3/8″ x 1″ (Qty. 48)

11 – 1105322 Bow Rest/Latch – 12″ Rise (Qty. 1)

14 – 1100469 Rope – 32′ (Qty. 1)

15 – 1700682 Box Hook – 5/16″ Holes (Qty. 2)

16 – 1700403 Self-Tapping Screw – 1/4″ x 3/4″ (Qty. 4)

17 – 1700649 Rubber Strap – 15″ (Qty. 1)

18 – 1106929 Pull Handle (Qty. 1)

20 – 1701205 Ridgepole Tube – 20′ (Qty. 1)

22 – 1700212 Protective Cap (Qty. 2)

23 – 1104768 Self-Drilling Screw – 1/4″ x 3/4″ (Qty. 2)

24 – 1106805 Bow Pivot Bracket (Qty. 6)

25 – 1106806 Skid Plate (Qty. 4)

26 – 1106809 Skid Plate w/Stop (Qty. 1)

27 – 1106810 Skid Plate w/Catch (Qty.1)

NOT INCLUDED IN KIT: 10, 12, 13, 19, 21

NOTE: Order Turning Pointâ„¢ bow kits by size of trailer, specifying 8″ rise or 12″ rise. Reverse roll option available; call for details. All components other than standard may require a non-refundable engineering fee of $75 and manufacturing fee of $25. Call for details.



Additional information

Weight 120 lbs
Dimensions 50 × 14 × 14 in
